Description

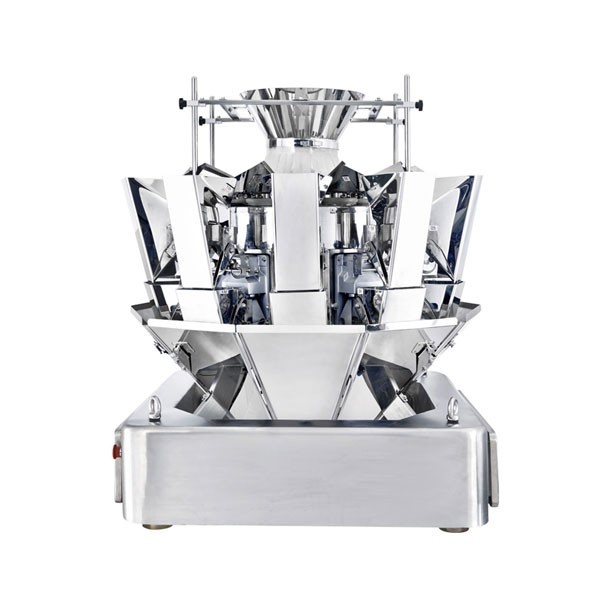

Standard 2rd G Multihead Weigher is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs, etc.
Features:
1.Special load cell with high precision and high standard;
2.Intelligent fault alarm, convenient maintenance;
3.High speed staggered discharging function, effectively prevent blocking materials;
4.With high integrated modular design makes mechanical and electronic components easy to install and maintenance;
5.Modbus industry standard communication protocol, realize the interface combination of multihead weigher and packaging machine
Model | A10 | A14 |
Identify Code | A10-2-1D | A14-2-1D |
Weighing Range | 10-1000g | 10-1500g |
Accuracy | X(0.5) | X(0.5) |
Max Speed | 65 P/M | 120 P/M |
Hopper Volume | 1.6L/2.5L | |
Control Panel | 7.0” Touch Screen | |
Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
Driving System | Step Motor | |
Power Requirement | 220V/1000W/ 50/60Hz /10A | 220V/1000W/ 50/60Hz /10A |
Packing Dimension | 1620(L)*1080(W)*1120(H) | 1700(L)*1080(W)*1210(H) |
Gross Weight | 400kg | 500kg |
